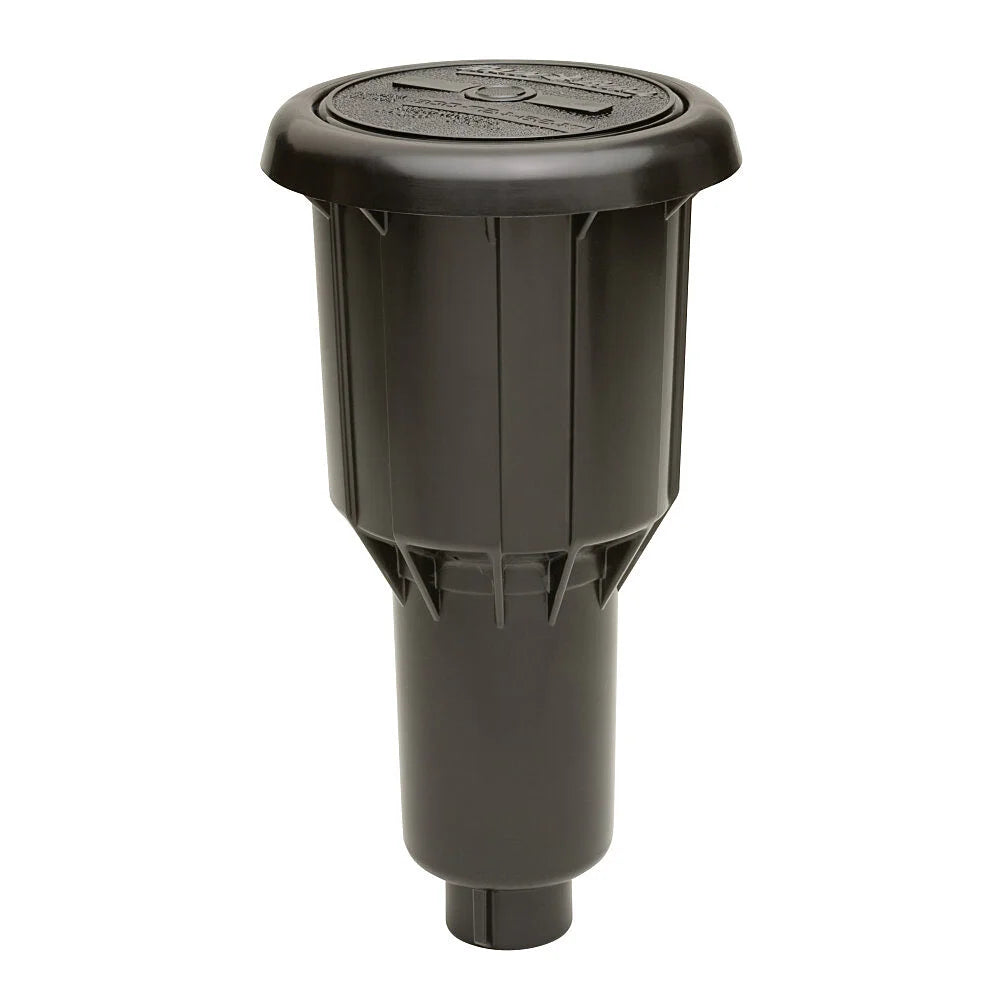

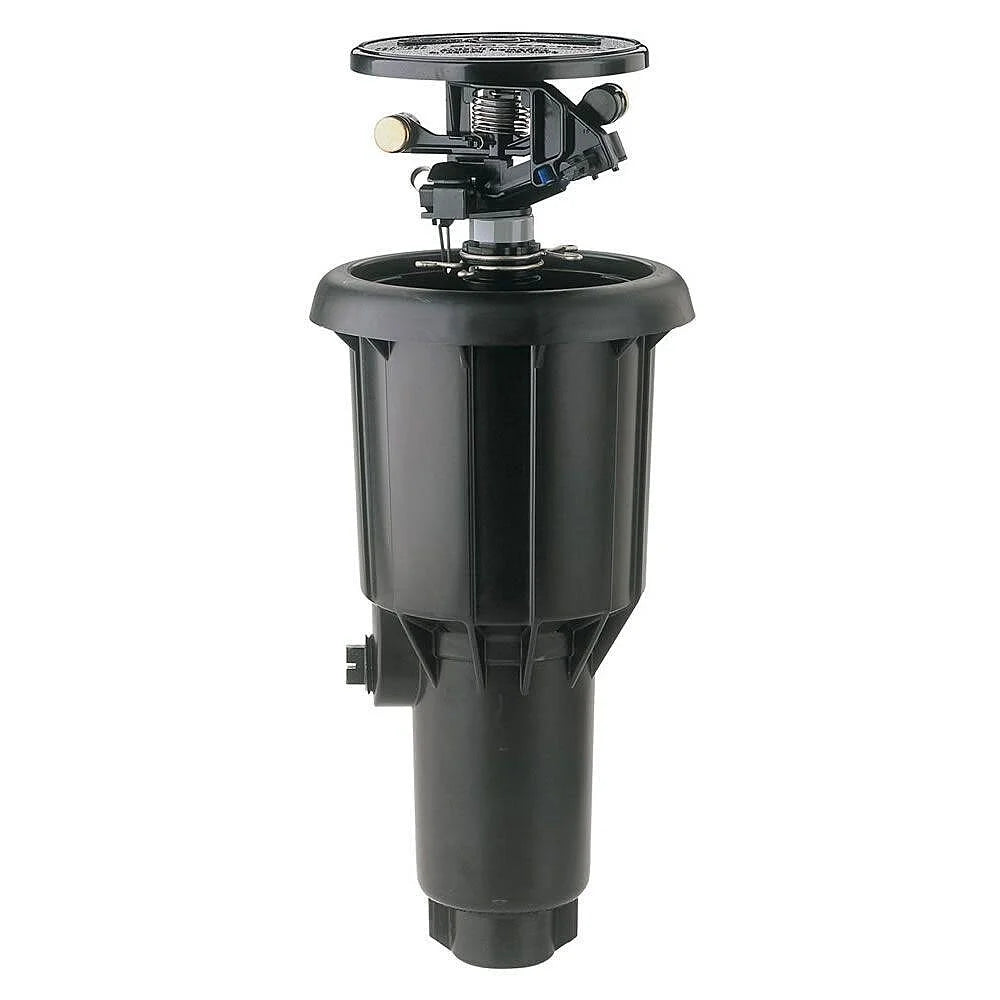

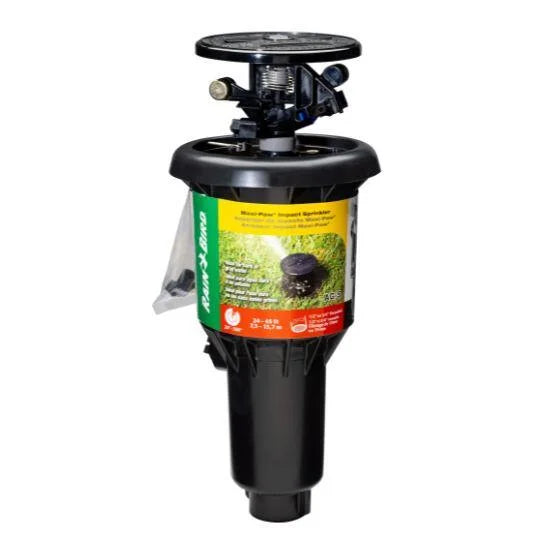

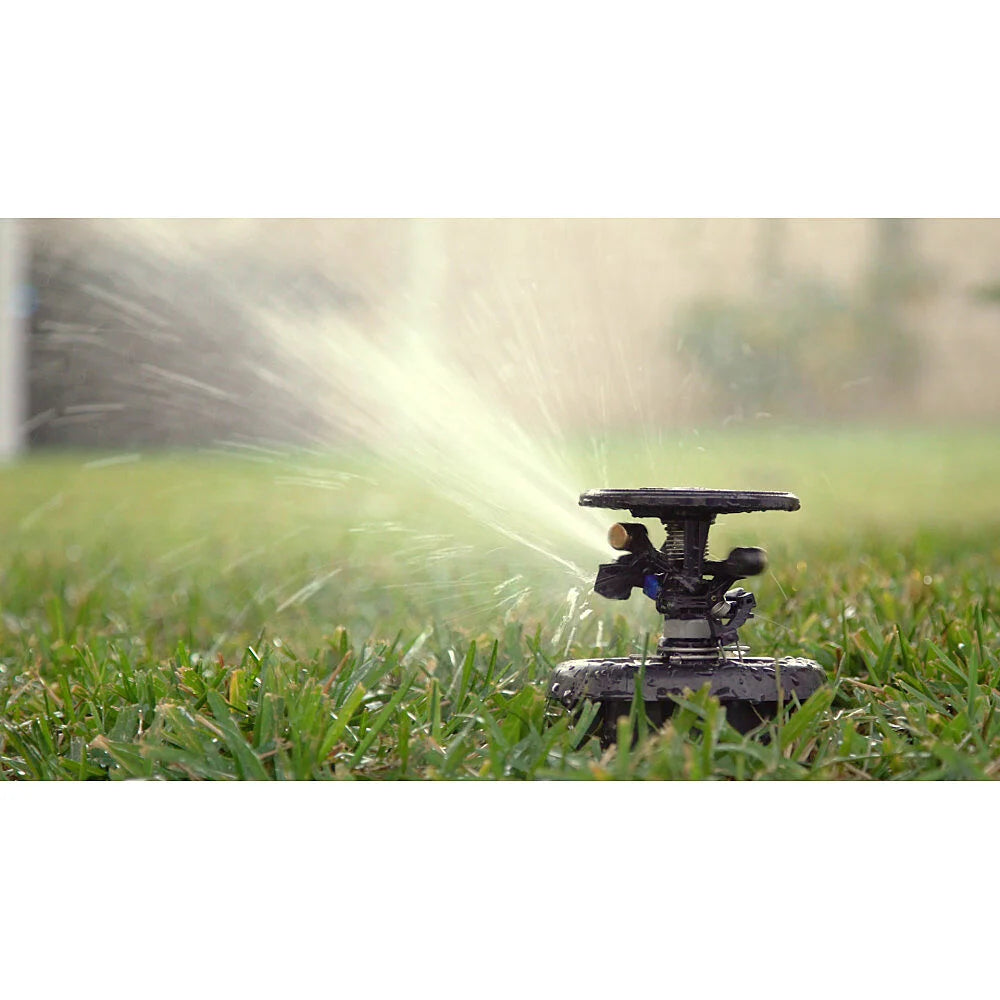

Rainbird MAXI‑PAW Pop‑Up Impact sprinkler. Code RB‑B0690008
Rainbird MAXI‑PAW Pop‑Up Impact sprinkler. Code RB‑B0690008
Regular price
$10.00 USD
Regular price
$65.00 USD
Sale price
$10.00 USD
Unit price
/
per
Couldn't load pickup availability
About this item

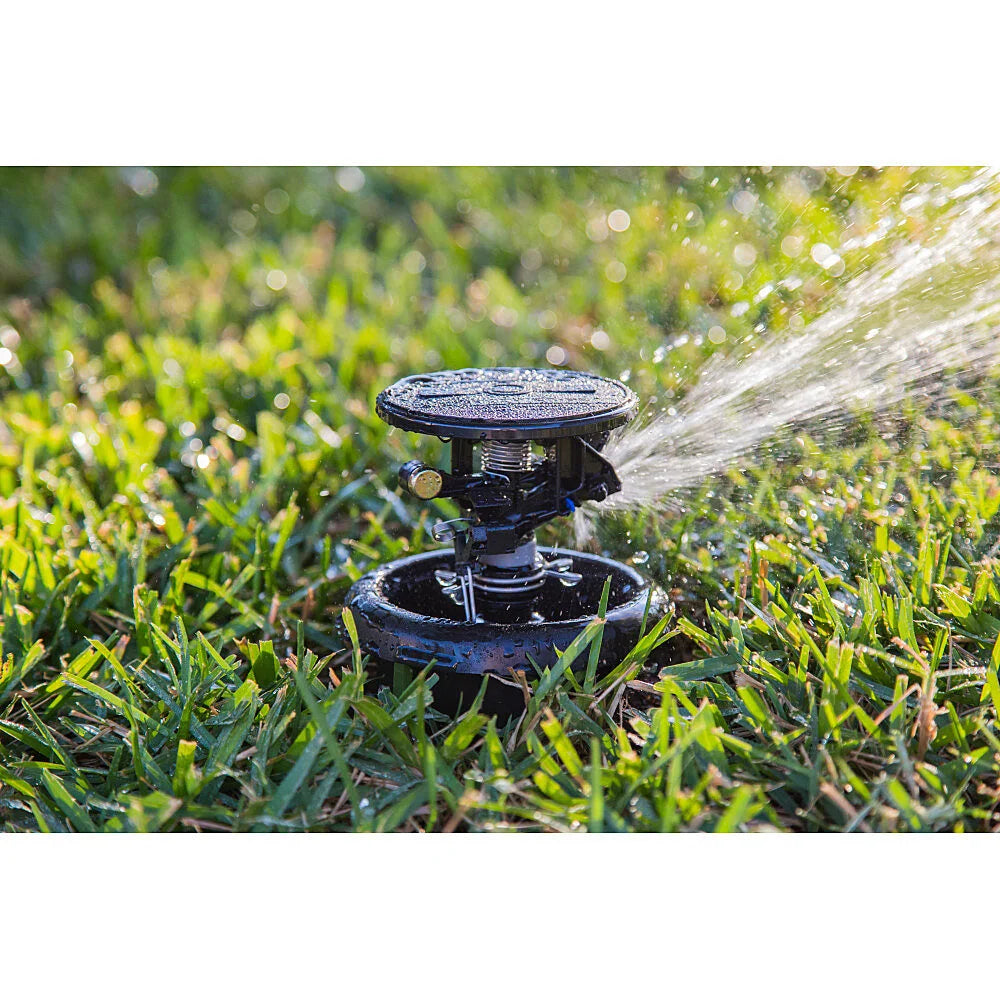

The Maxi-Paw's powerful throw permits maximum spacing and offers superior close-in watering and uniform water distribution. Low pressure loss and an efficient, straight-through flow design conserve energy and are ideal for dirty water applications.
The optional Seal - A - Matic prevents run - off, puddling, and erosion caused by low head drainage.And most important, it 's rugged and dependable, popping up on schedule again and again because of the multi-function wiper seal.The Maxi-Paw Rotor a tradition of excellence.
Features
- Five interchangeable, color-coded MPR nozzles.Two interchangeable low-angle (LA) nozzles are Available

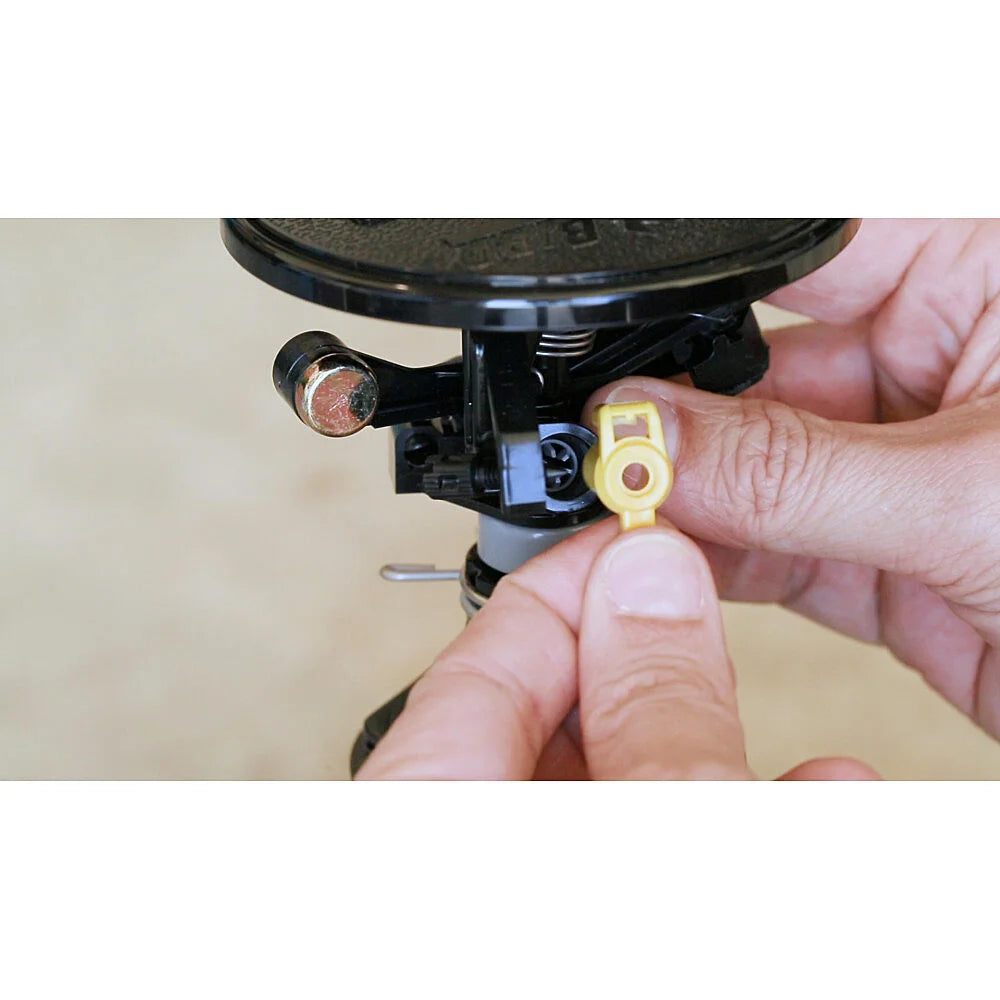

- No tools required to change nozzles.
- Heavy-duty plastic case with sturdy, reinforced ribbed design.
- Double-weighted arm for slower rotation and increased distance of throw.
- Self-flushing inner trip with improved inner trip lever.
- Powerful reverse action.
- Adjustable arm spring for low-pressure and low-gallonage operation.
- Energy efficient, low-pressure and lowgallonage operation.
- Proven impact drive.
- Straight-through flow.

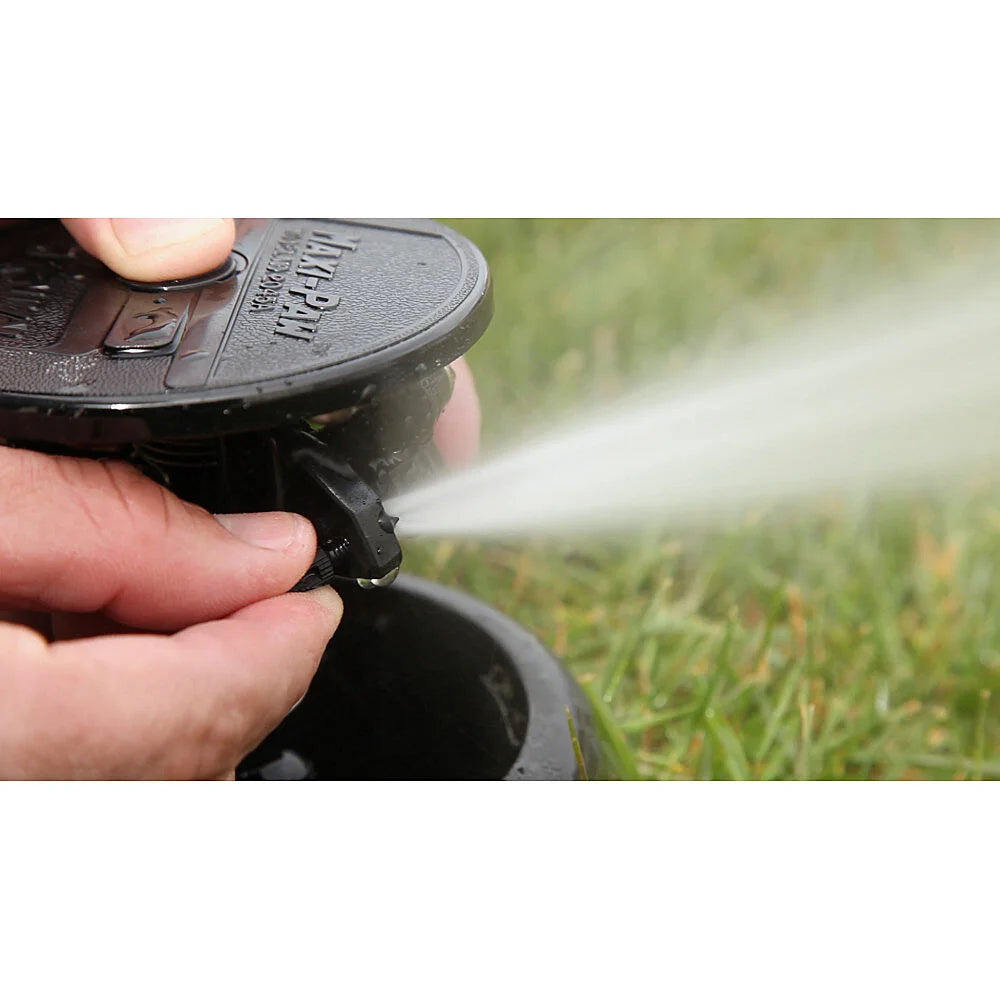

- Full-circle or adjustable arc 20° to 340°.
Specifications

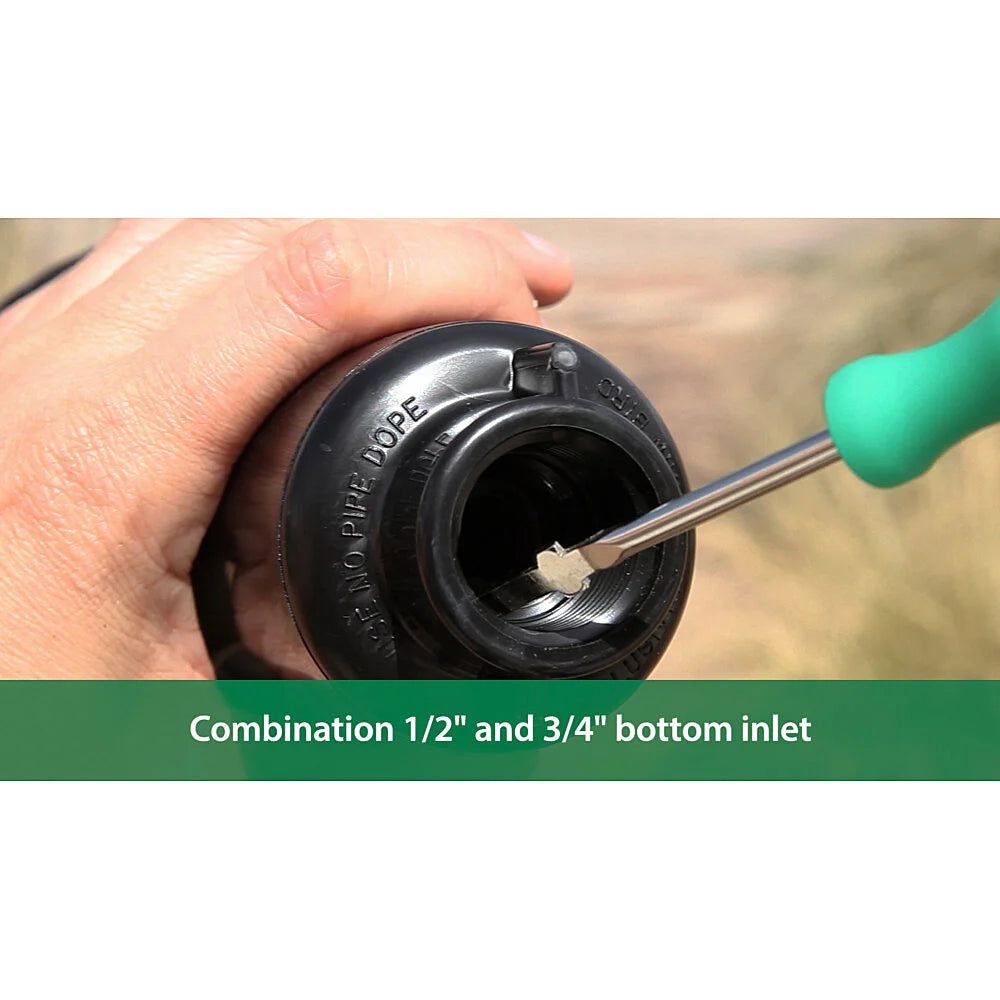

- Combination 1⁄2" (15/2 1) or 3⁄4" (20/2 7) female bottom inlet
- 1⁄2" (15/21) female side inlet

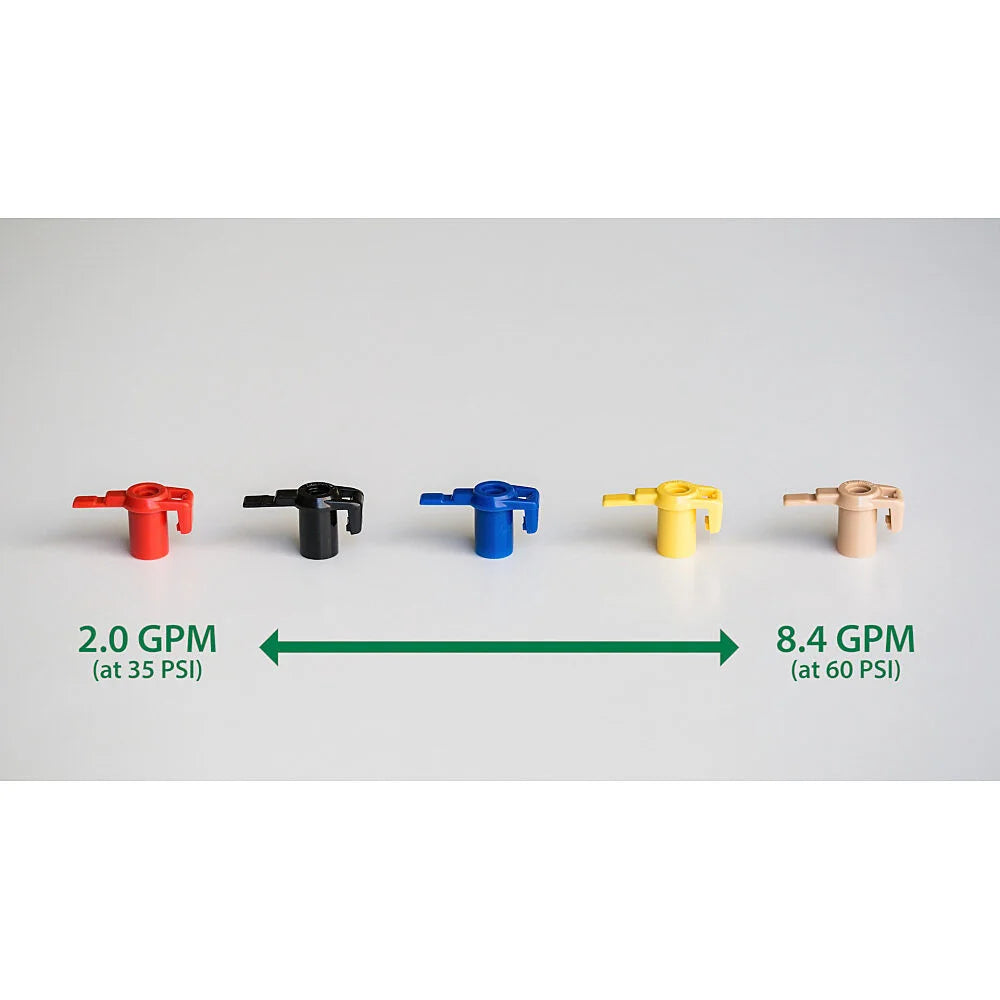

- Nozzles: 06-red; 07-black; 08-blue;10-yellow;12-beige
- Nozzle outlet trajectory is 23°.
- Side inlet installation is not recommended in freezing climates.
- Optional SAM feature holds back up to 10 feet (3,1 m) of elevation change.
- Overall height: 9 3/10" (23,6 cm)
- Top diameter: 5" (12,7 cm)
- Available Nozzles
- Standard trajectory
- 06, 07, 08, 10, 12
