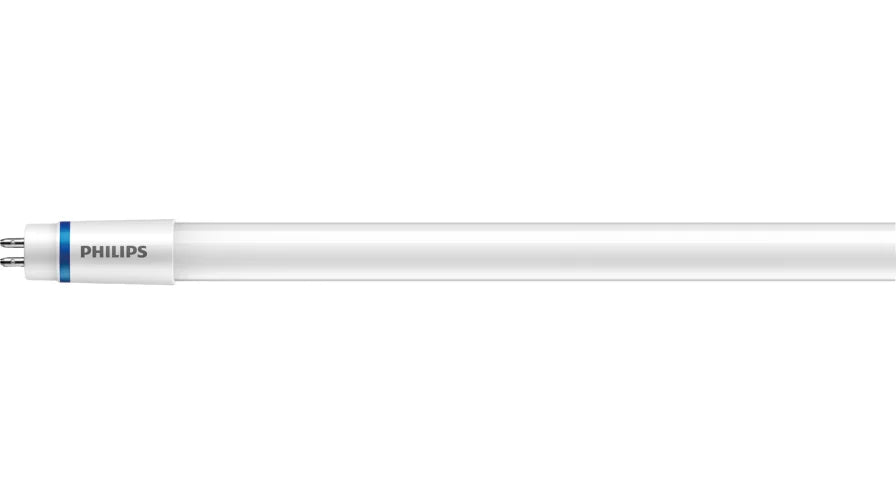

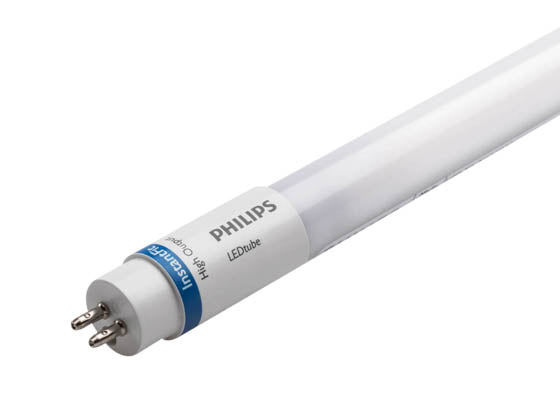

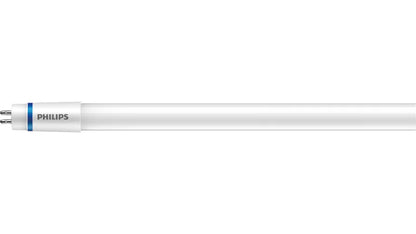

Philips 24T5HO/46-840/IF35/P/DIM | 24W Dimmable 46" 4000K T5 LED Bulb, Works with T5HO Ballasts
Philips 24T5HO/46-840/IF35/P/DIM | 24W Dimmable 46" 4000K T5 LED Bulb, Works with T5HO Ballasts
Couldn't load pickup availability
Abot this item
Philips dimmable T5HO 46" LED is an energy saving, linear polycarbonate plastic replacement for a 54 watt, G5 Bi-Pin T5HO fluorescent lamp. It operates off of the existing electronic T5HO ballast. Eliminates the need to have an electrician rewire the fixture. Ideal for high bay linear applications. Does not support line voltage. Simply take out the existing fluorescent T5HO lamp and replace with the Philips LED T5 InstantFit lamp. An ideal energy saving choice for existing linear fluorescent fixtures.
Turn power off when installing the lamp.
Requires a compatible dimming ballast for dimming applications. Call a Bulbs.com Lighting Specialist at 888.455.2800 for details.
- To be used with shunted lampholders
- Eliminate the need for rewiring and allows the fixture to maintain original UL and CSA compliance
- Perfect for applications with frequent "on/off" switching cycles, and buildings that desire to be mercury free
- Instant on, no flicker or buzz
- Fits into existing linear fixtures
- Emits virtually no UV rays or IR
- Suitable for damp locations
Full Specs
|
Brand |
Philips Lighting |
|
Product Line |
InstantFit |
|
Model Number |
24T5HO/46-840/IF35/P/DIM 10/1 |
| Energy Used | 24 Watts |
| Fluorescent Equivalent | 54 |
| Volts | 120-277 |
| Base | Miniature Bipin |
| Bulb Shape | T-5 |
| Bulb Color | Cool White |
| CRI | 82 |
| Color Temperature (Kelvin) | 4000 |
| Brightness (Lumens) | 3500 |
| Bulb Finish | Opaque |
| Bulb Technology | LED |
| Average Rated Life (hr) | 50000 |
| Operating Temperature (°F) | -4 to 113 |
| Beam Angle (°) | 160 |
| Bulb Power Type | Ballast Compatible |
| Length (in) | 46 |
| Diameter (in) | 0.75 |
| Nominal Length (ft) | 4 |
| Socket Type | Shunted |
|
Manufacturer Warranty |
5 year limited |
| Damp Location | Yes |
| Dimmable | Yes |
|
DLC Listing |
PUFNVUMP Standard |
